MAIWO K1690 M.2 NVME SATA SSD Enclosure Adapter

View large





MAIWO K1690 M.2 NVME SATA SSD Enclosure Adapter

Model：K1690
Hardware Interface：USB 3.1 Type C
Brand：MAIWO
Color：Blue
Item Dimensions LxWxH：4.33 x 1.48 x 0.49 inches
Hardware Platform：PC

Amazon Newegg

Product introduction
Related products

Product introduction

【Compatibility】This M.2 NVMe SATA enclosure is applicable to M.2 PCIe NVMe and SATA SSD, M Key and B&M Key, 2230/2242/2260/2280.

【10Gbps Transfer Speed】This M.2 enclosure equips with RTL9210B chipset and USB 3.1 GEN2 output interface, supports UASP/TRIM with 10Gbps ultra fast transmission speed.

【Max 4TB Capacity】The M2 NVMe SATA to USB Adapter supports max. 4TB capacity.

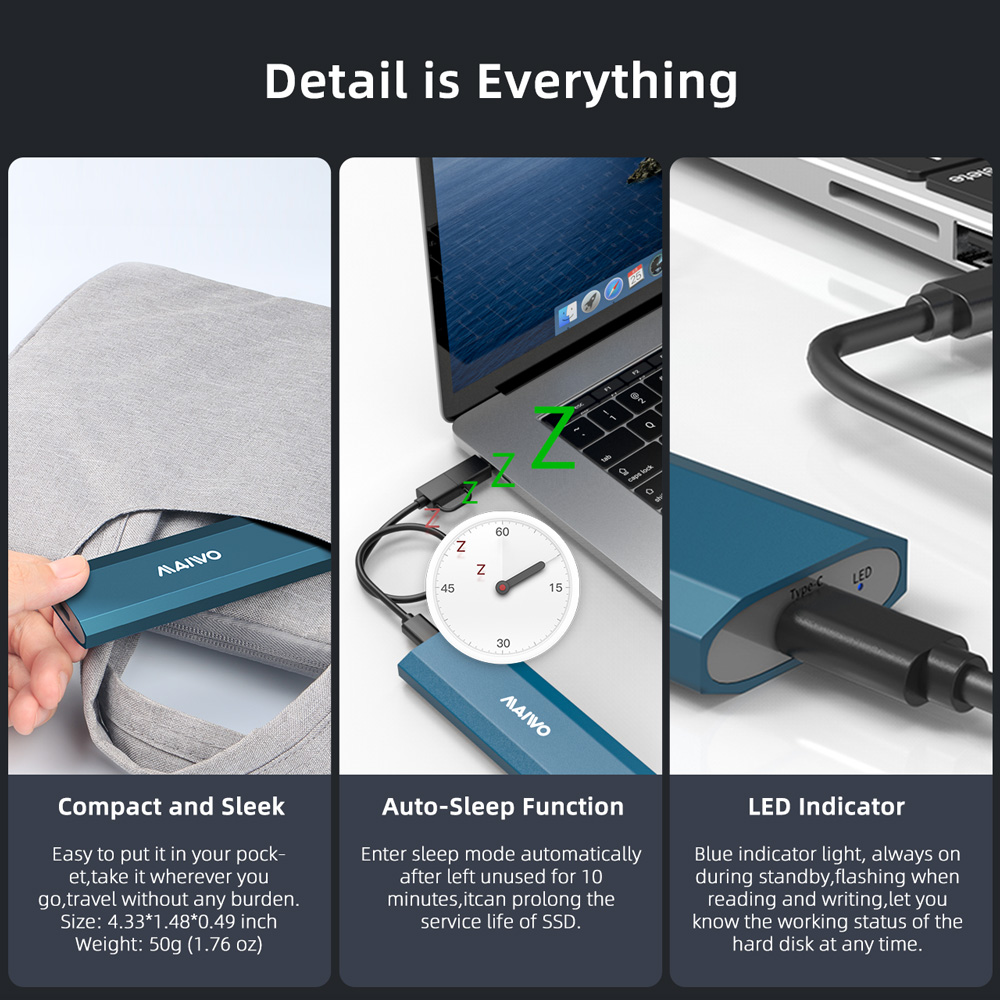

【LED Indicator】USB to M.2 NVMe SATA adapter comes with LED indicator, it can show drive’s work status.

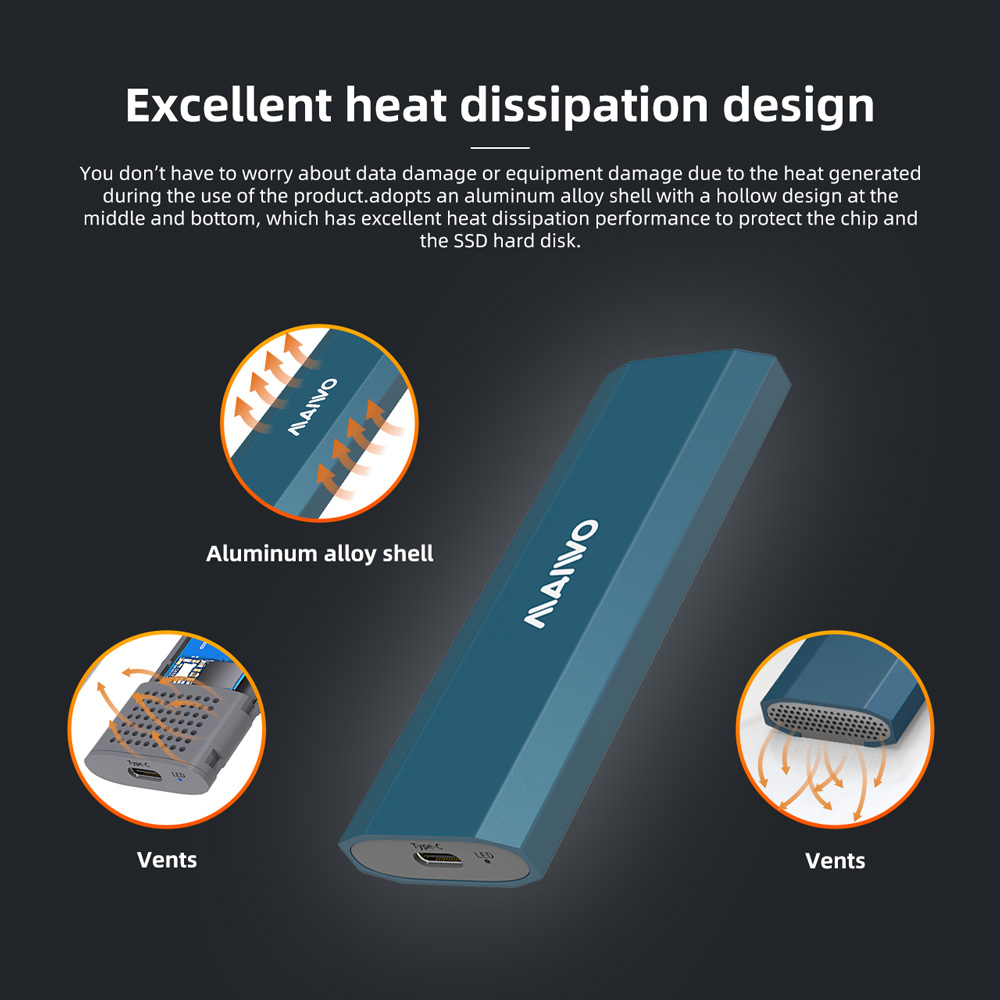

【Aluminium Alloy Shell】The aluminium alloy shell and ventilation holes makes excellent heat dissipation, protect the chipset and the hard disks perfectly.

【Feature】10mins Auto Sleep / Tool Free / Plug and Play / 4.33 x 1.48 x 0.49 inches / Support Mac OS, Linux and Windows

m.2 nvme sata ssd to usb adapter external reader

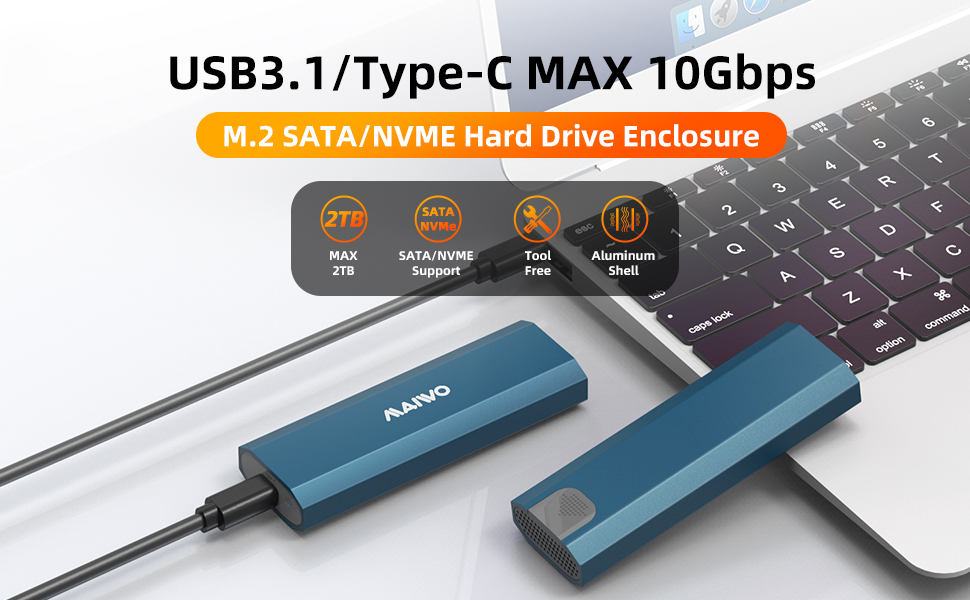

MAIWO USB C to M.2 SATA and NVMe SSD Enclosure with UASP/TRIM

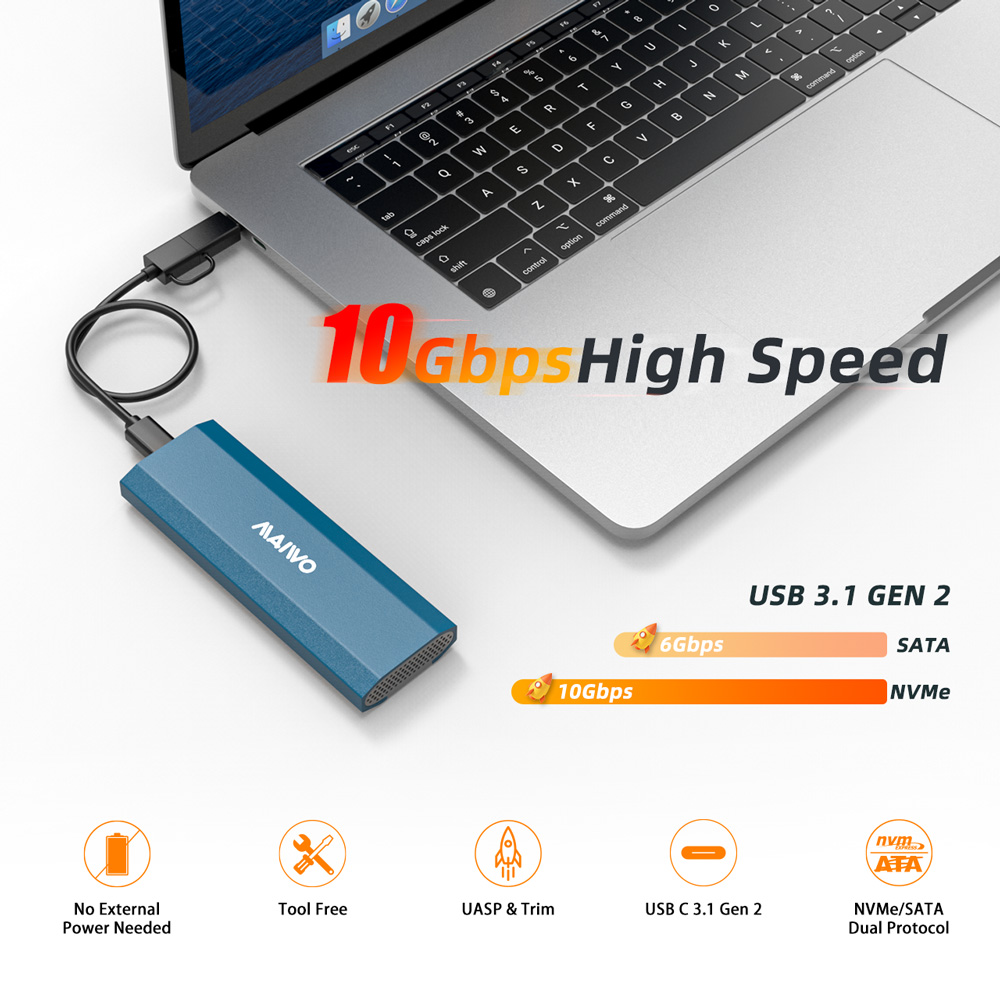

10Gbps Transmission Speed

This M.2 Enclosure equips with RTL9210B chipset and USB 3.1 Gen2 output interface, supports UASP / TRIM with 10Gbps ultra fast transmission speed.
Max 4TB Capacity.

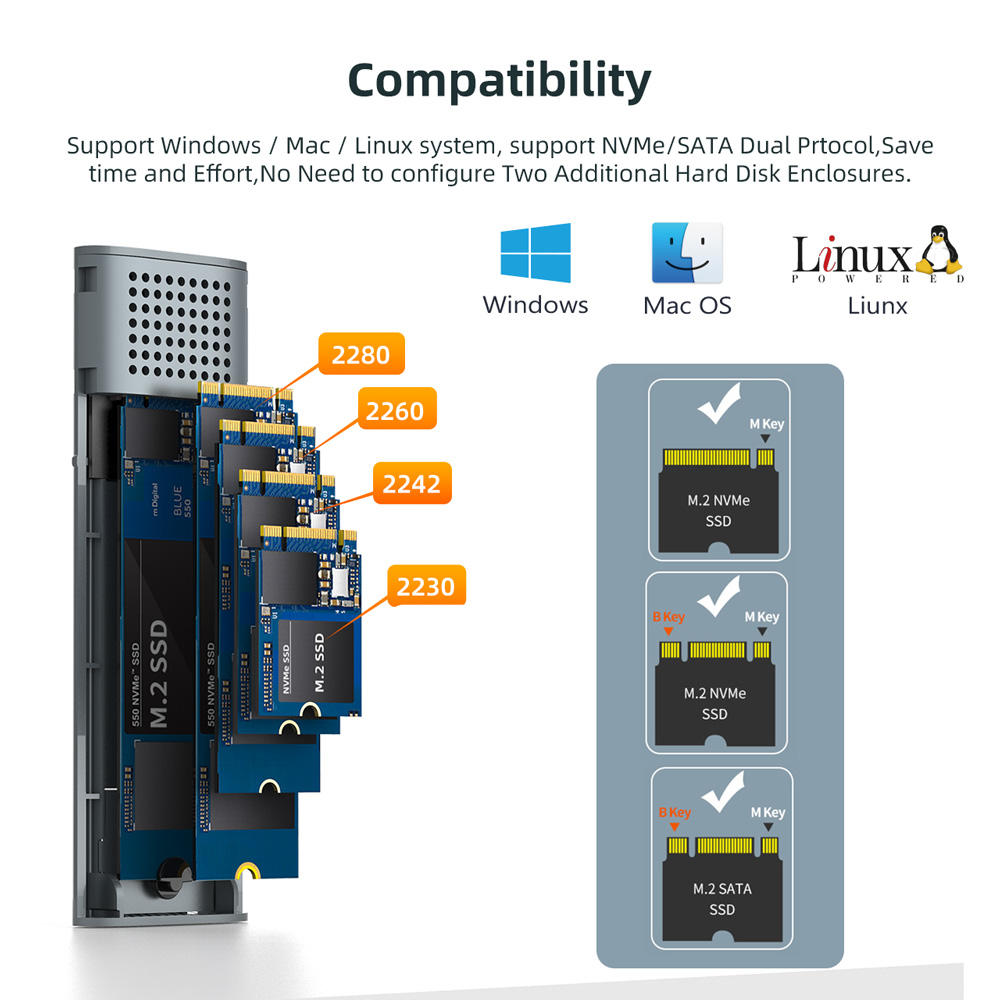

SATA & NVME Compatibility

Compatible with M.2 PCIe NVMe and SATA solid state drive with M Key or B+M Key interface in sizes: 2230/2242/2260/2280.

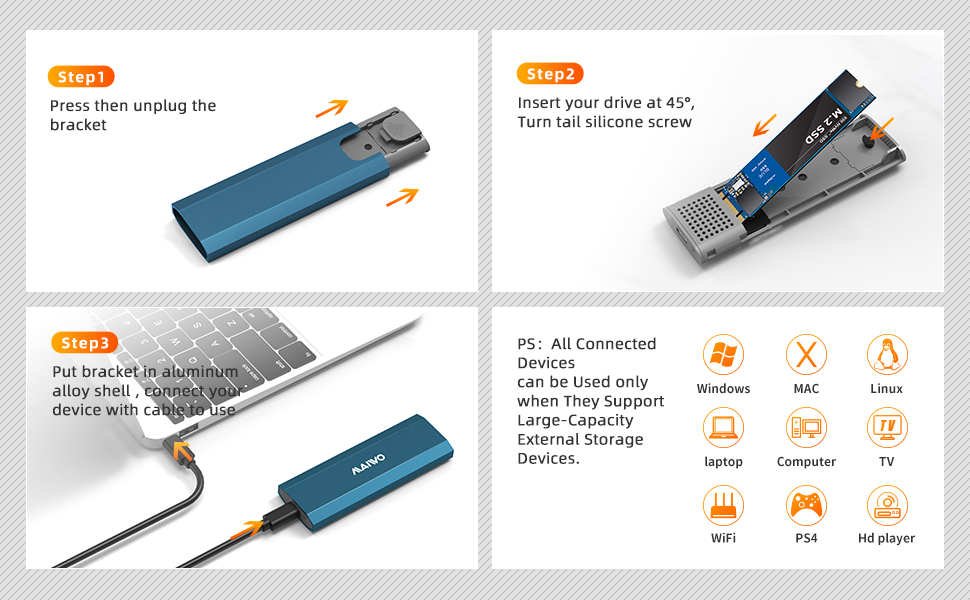

Tool-Free & Plug and Play

This Type-C to M.2 NVMe SATA Adapter is Tool-Free designed, allows quick installation in one second.
Support Plug & Play and Hot-Swapping, no drivers needed.

Protable Design

This M.2 SSD external hard drive case adopts aluminum alloy shell, slim and durable, it is portable and easy to carry.
Item Size: 4.3x1.5x0.5inch (110x37.5x12.5mm) Item Weight: 0.11lb. (50g)

This SSD to USB adapter is compatible with below SSDs:

SAMSUNG: 980/980 PRO/970 EVO Plus/970 EVO/970 Pro/960 Pro/960 EVO/860 EVO Series
Western Digital: WD Blue SN550/WD Blue SN750/3D NAND/WD BLACK SN850/WD BLACK SN750 SE/WD BLACK SN750 Series
Crucial: P2/P5 Series
Kingston: A2000/KC2000/KC2500/SA400M8
Seagate: BarraCuda 510/FireCuda 510/FireCuda 520
Toshiba: RC500/RD500/RC100/RC10
HP: EX950/EX900 Series
Intel: 600P/660P/665P/760P/545S/Optane 800P/Optane H10
Sabrent: Rocket 4 Plus/Rocket/Rocket Q

Note: Please feel free to let us know if your hard drives are not included in the list, we are glad to help to check if this M.2 Enclosure is compatible with your hard drives.

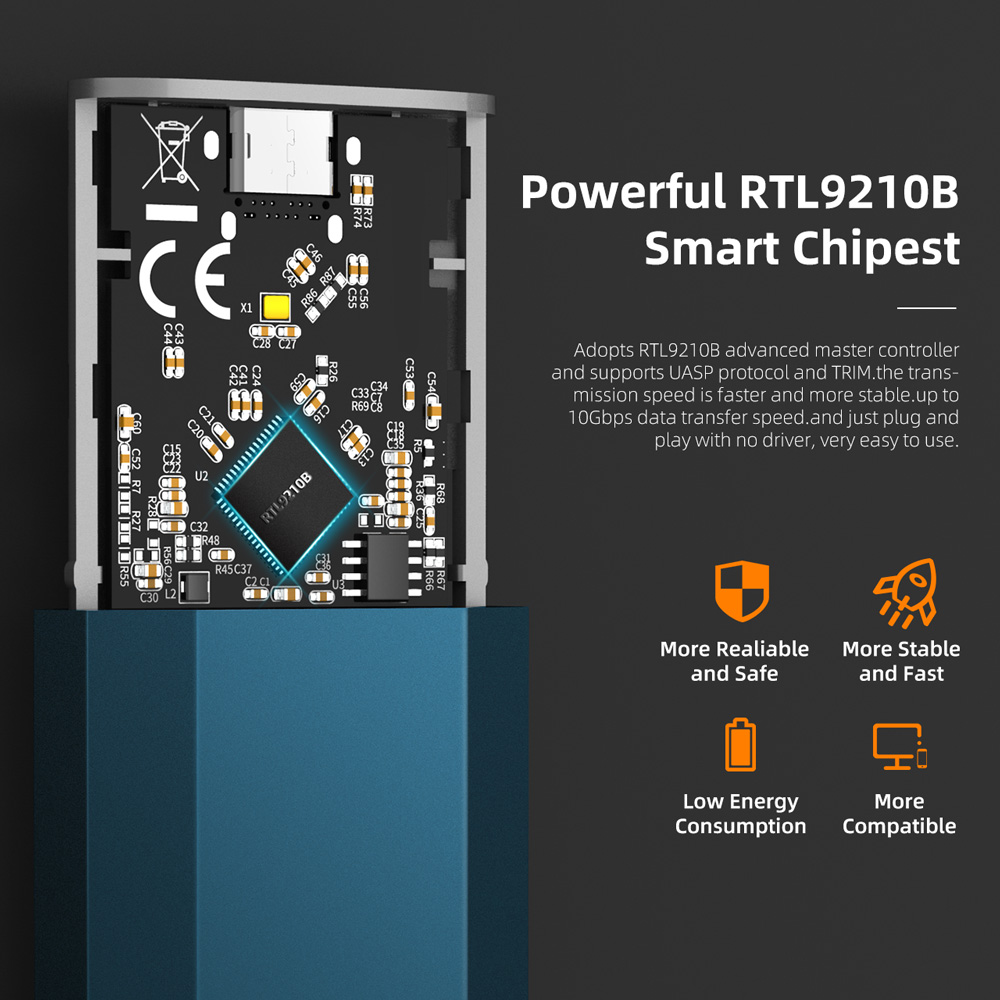

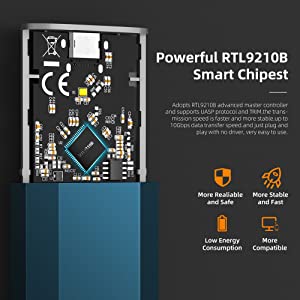

Powerful Chipset This type c to M.2 external drive adapter equips with RTL9210B chipset. It is stable, fast, realiable and low energy consumption. Plug and Play, no drivers needed. Tool Free, very easy to use.	Excellent Heat Dissipation The Aluminium Alloy Shell and ventilation holes makes excellent heat dissipation, and this enclosure comes with Silicone Thermal Pad and Aluminium Thermal Pad which can protect the the drive perfectly.	Auto Sleep If there is no operation in 10 minutes, the m.2 SSD box will enter smart Sleeping Mode automatically to reduce hard disk consumption.

If you computer can't recognize the SSD enclosure, please following below steps.

For new SSD, You need to get into the disk management and initialize the SSD firstly, then it could be detected and used normally. Please finish disk initialization according to the following steps.

How to start disk management?

Right click "Computer" - "Manage" - "Disk Management".

Find your unallocated disk, right click "Unallocated", and choose "New Simple Volume Wizard".

How to start disk management (in windows 10)?

Click Start -> Run -> type compmgmt.msc -> click OK.

Alternatively, right-click on the My Computer icon and select 'Manage'. In the console tree, click Disk Management.

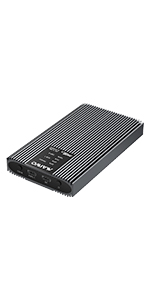

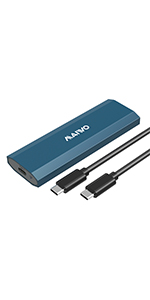

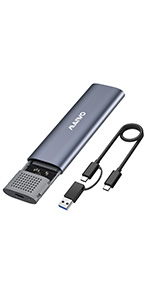

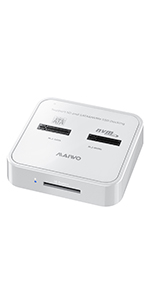

	M.2 NVMe/SATA Enclosure	M.2 NVMe Enclosure	M.2 NVMe/AHCI Duplicator	M.2 NVMe/SATA Dock	mSATA Adapter
Compatible Drive	M.2 NVMe SATA	M.2 NVMe	M.2 NVMe AHCI	M.2 NVMe SATA, SD/SD Card	mSATA
Compatible Size	2230/2242/2260/2280	2230/2242/2260/2280	2230/2242/2260/2280	2242/2260/2280/22110	30x30/51x30
Output Interface	USB 3.1 GEN2	USB 3.1 GEN2	USB 3.2 GEN2x2	USB 3.1 GEN2	USB 3.0
Max Capacity	4TB	4TB	4TB	4TB SSD+4TB SD Card	2TB
Tool-Free	✓	✓	✓	✓	X
