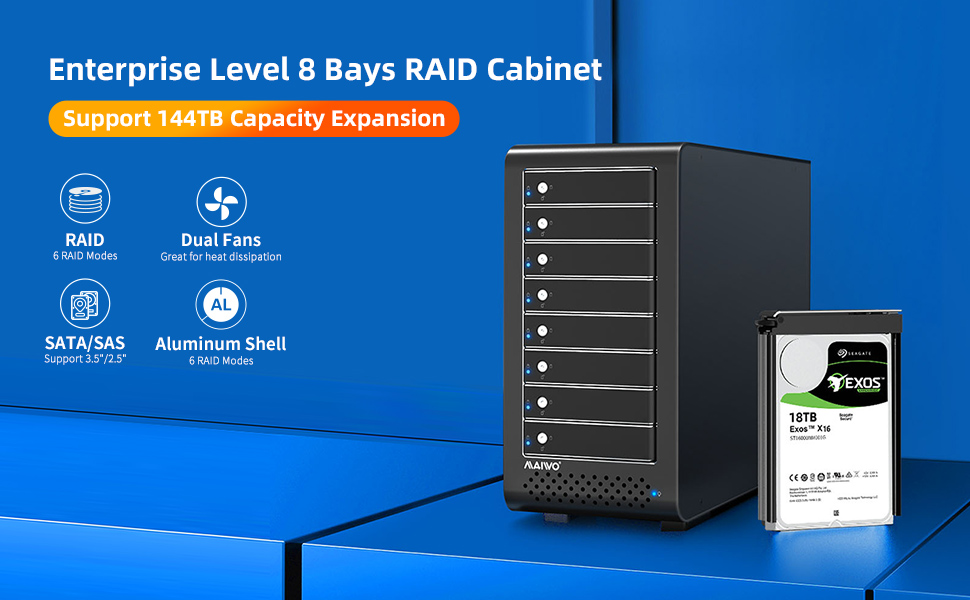

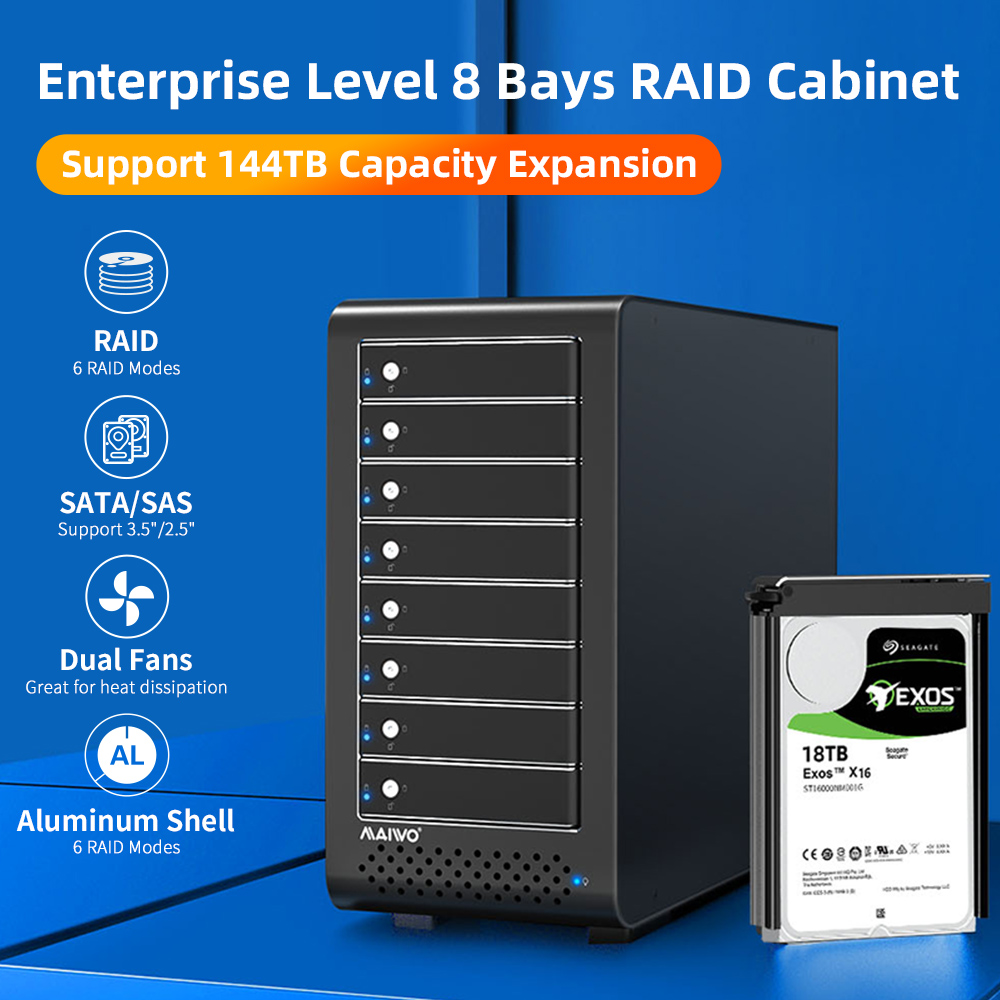

MAIWO Aluminum Multi 8 Bays 2.5" / 3.5" SATA HDD / SSD Enclosure RAID Cabinet docking

  • Product Model:K8FSAS
  • Material:Alumium Alloy Case
  • Color:Black
  • Input:2.5"/3.5" SATA SSD/HDD and SAS HDD
  • Output:2X SAS
  • Support Protocols:SATA and SAS
  • Transmission Rate:3Gbps
  • Compatible SSD:2.5"/3.5" SATA SSD/HDD, SAS HDD
  • Product Features:Data read, write and RAID
  • Supported System:Windows/Mac OS/Linux/Android

Product introduction

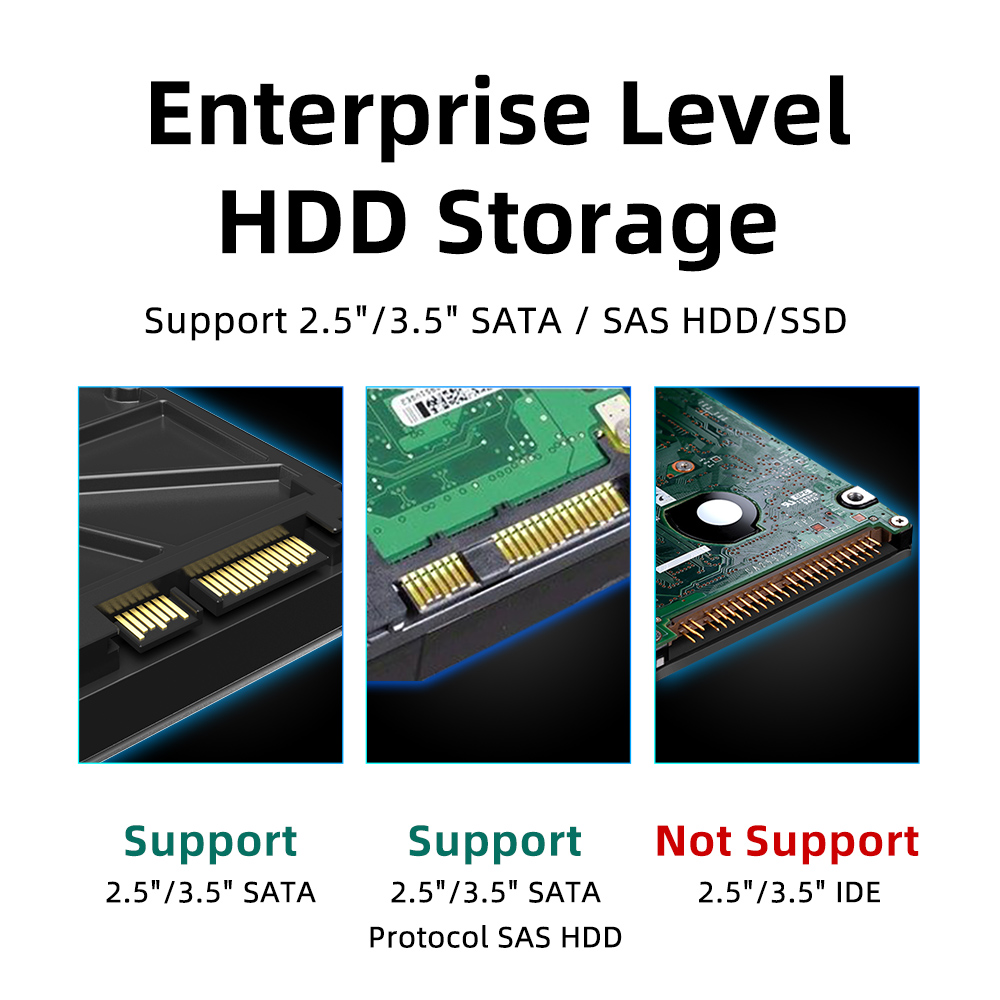

【Compatibility】This 8 Bay RAID Enclosure supports all 2.5/3.5 inch SATA SDD and HDD with serial port, also support SAS HDD with SATA protocol.(DO NOT SUPPORT IDE)

【6 RAID Modes】RAID 0/1/10/15/5/6

【144TB Capacity】This Direct Attached Storage (DAS) for 2.5" 3.5" External Hard Drive supports max. 144TB capacity (18TB X8).

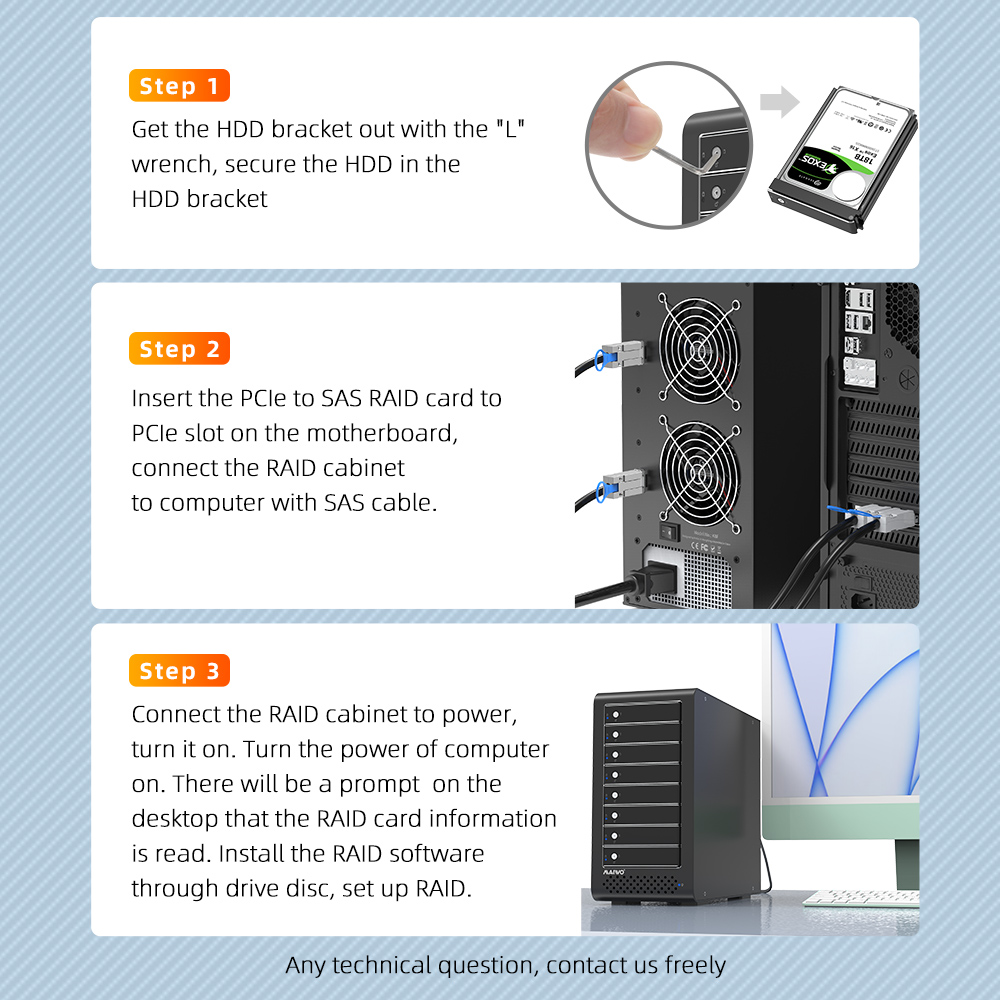

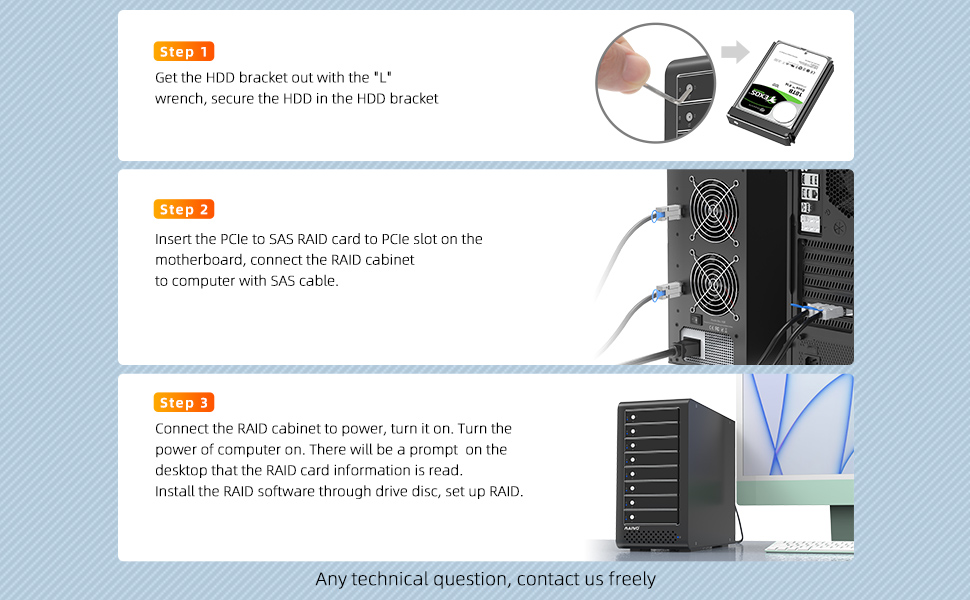

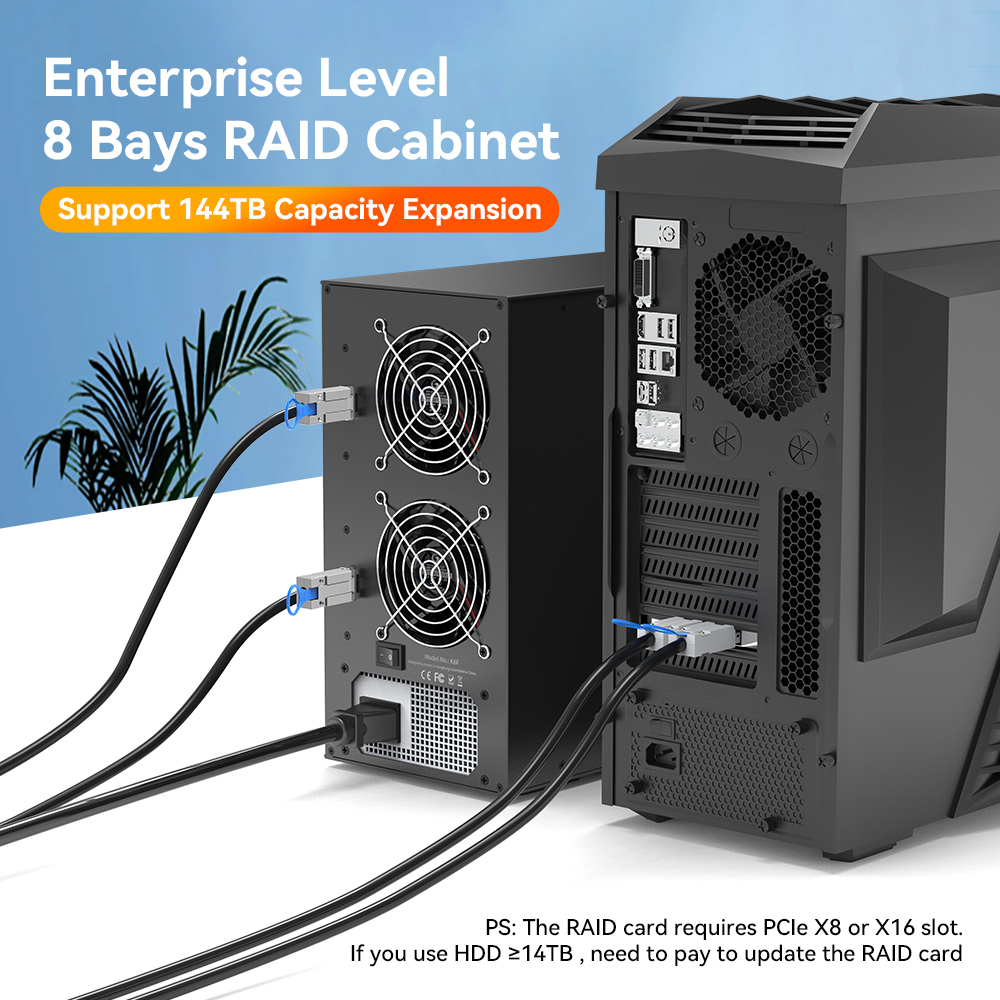

【SAS Output Interface】Equip with two SAS output interfaces and two data cables.Every 4 pieces drives need one cable.

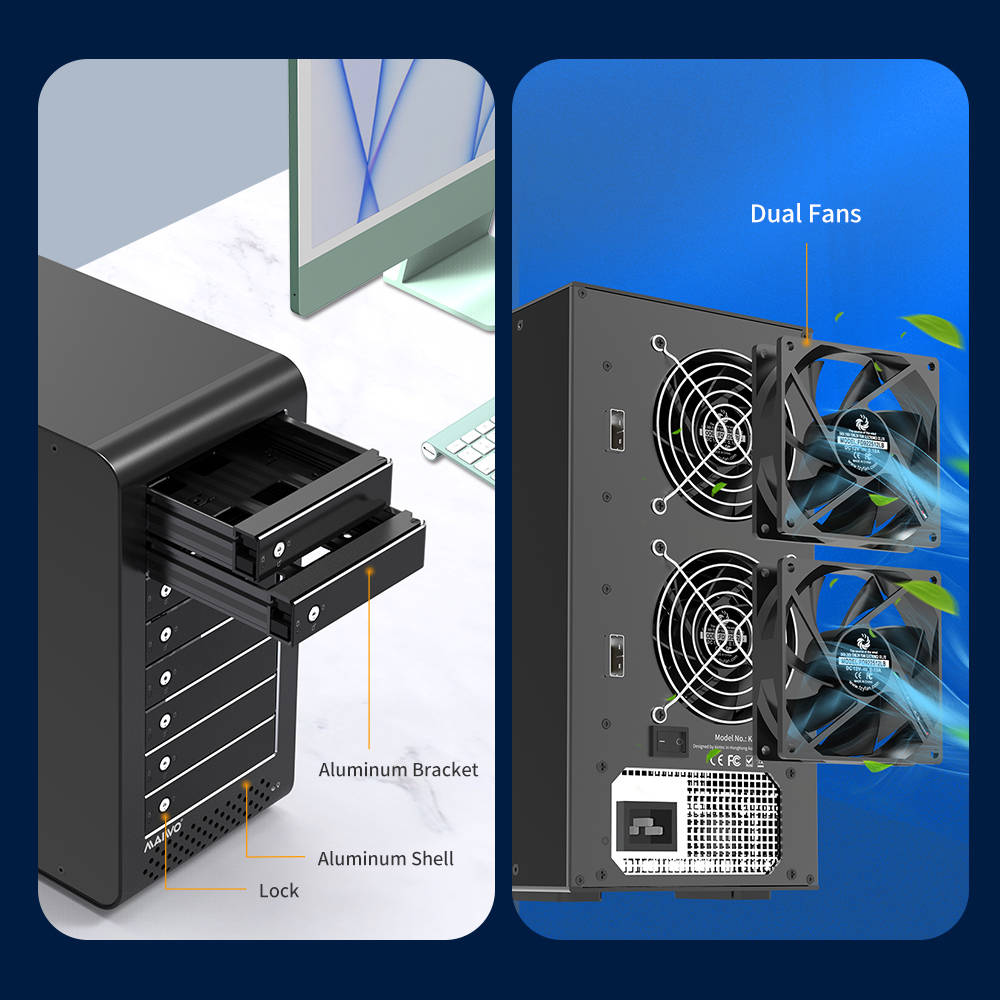

【Intelligent Temperature Control System】The honeycomb heat sink and cooling fan of this storage cabinet make better heat dissipation. Follow the principles of energy conservation and environmental protection, cooling fan won’t work if temperature below 45°C, fan will automatically turn to Level 1 when temperature is 46-47°C and turn to Level 2 when temperature is 48°C or above.
